    System 8200 Multi-function surgical power tool(System 8200)

    Availability:

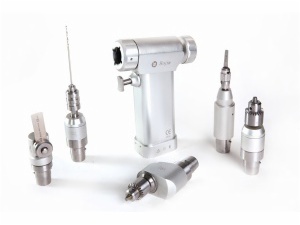

    System 8200 Multi-function surgical power tool(System 8200)
    Attachments for your selection:
    BJ8201 Sagittal saw.
    BJ8203 Canulate drill.
    BJ8202SAO AO drill.
    BJ8209 Reciprocating saw.
    BJ8213 K-wire drill.


    Specification:

    Electric Handpiece
    BJ8200
    Electric:
    Yes
    Multifunctional:
    Yes
    Weight (with battery):
    ≤1000 Grams
    Speed:
    0-15000 rpm
    Power source:
    Battery
    Sterilizable:
    Autoclavable
    Battery:
    BJ8001
    Technology:
    Ni-Mh
    Insert/detachment method:
    The telescopic
    The blocking mechanism:Yes
    Autoclavable Aseptic Transfer Kit:
    Yes
    Run time with battery:30-40 min
    Sagittal saw attachment:BJ8201
    Oscillations (osc/min)0-15000
    Operation(V) voltage7.2
    Sterilization135°C
    Noise(db)≤45
    Bone drill attachment:BJ8202
    Speed(r.p.m)0-1100
    Torque(Nm)0.9
    Operation(V) voltage7.2
    Sterilization135°C
    Noise(db)≤40
    Canulate drill attachment:BJ8203
    Speed(r.p.m)0-460
    Torque(Nm)1
    Operation(V) voltage7.2
    Sterilization135°C
    Noise(db)≤40
    Ao drill attachment:BJ8202SAO
    Oscillations (osc/min)0-1100
    Operation(V) voltage7.2
    Sterilization135°C
    Noise(db)≤40
    Reciprocating saw attachment:BJ8209
    Speed(r.p.m)0-15000
    Torque(Nm)/
    Operation(V) voltage7.2
    Sterilization135°C
    Noise(db)≤45
    K-wire drill attachment:BJ8213
    Speed(r.p.m)0-1100
    Torque(Nm)1
    Operation(V) voltage7.2
    Sterilization135°C
    Noise(db)≤40

    Warranty:
    The handpiece guarantees for 2 years, the battery and other fast consumption items guarantee for 3 months.


    Advantages:

    1.Excellent torque for prosthesis replacement surgery.
    2.Powerful motors can provide the best speed and power.
    3.Extended capacity battery ensure the implementation of efficient operation.
    4.The main components are made of high-strength stainless steel.
    5.Optional external power supply system.
    6.Autaclavable.
    7.Single and multi-function mode for selection.
